Belt telescopic conveyor

This conveyors are the best choice for warehouse units, either when it becomes necessary to increase their performance or when the available space is limited or, when it is not possible or economically feasible to reconstruct the entire system.

Automation of the transport system

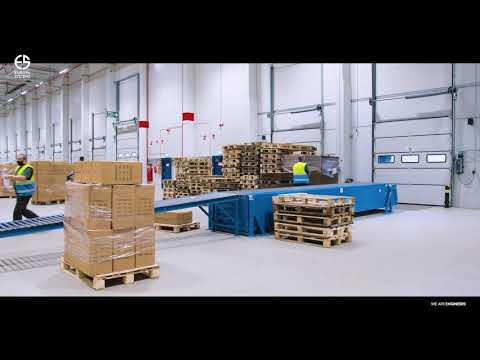

The telescopic conveyor is a solution for loading and unloading packages. When extended, it minimizes the need for operators to carry products by hand. If required, the drop-off or pickup point can be placed directly on the operator’s side with a simple joystick movement.

Benefits

improvement of work ergonomics
faster loading and unloading
safe and reliable operation

Realizations and application

Telescopic conveyors are mainly used for flexible unloading and loading of cars and trailers up to a length of 13 m. They are used to transport cartons, boxes, containers, small pallets up to 50 kg. Thanks to the use of telescopic conveyors in warehouses, the time needed for unloading and loading vehicles is significantly reduced, hence the popularity of this solution in new warehouse investments projects. An additional advantage is the ease of installation and low cost of purchase and integration with already functioning systems.

+48 603 939 415

Download catalog

Case Study

MIDOCEAN Case Study

E-COMMERCE WAREHOUSE – how to improve logistics efficiency at the loading dock

Detailed description

The telescopic conveyors, produced by Europa Systems, are dedicated to handle ≤ 50 kg loads.

Due to their special design, telescopic conveyors, consisting of a base and pull-out sections, significantly accelerate and facilitate the process of unloading and loading of goods. Our customers may select among conveyor variants with various numbers of pull-out sections and with different total length options, depending on the type of products transporting vehicles and the particular features of a warehouse (such as reloading platforms or the necessity to communicate with other conveyors).

With the application of telescopic conveyors at warehouses, the vehicle unloading/loading time periods are significantly reduced, hence the solutions become more and more common in new warehouse investment projects. The easiness of installation and the low costs of purchase and integration with other, already used systems, are further great advantages of our telescopic conveyors.

A telescopic belt conveyor is a recommended solution for loading and unloading of parcels where the transport of products is arranged on a rubber belt. The conveyors can be extended two or three times. The conveyor length changes are driven by electric motors. PVC bands are 600 or 800 millimetres wide, with forward or backward movement direction or with a bidirectional movement function. The standard length of a telescopic conveyor is 5 to 7 metres and the entire length with pull-out sections varies from 11.5 to 21 metres – on customer request, we may deliver conveyors in customised dimensions.
