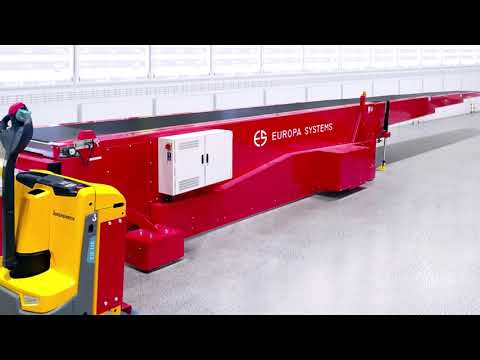

Mobile telescopic conveyor

Detailed description

For the most important feature of the conveyor – i.e. mobility – is responsible a pallet truck, permanently attached to the structure of the conveyor frame. The operator, using the trolley drawbar, controls the conveyor under the loading / unloading dock. The trolley’s platform is equipped with a counterweight, which allows the maximum extension of the conveyor in any place, without the need to anchor it to the floor. The trolley is electrically powered and its battery is charged each time the power cord is connected to the electricity supply. The mobile platform of the conveyor rests on four wheels (including one driving pallet truck) which are in contact with the floor of the room all the time. The maximum speed that the mobile platform can reach is 6 km / h, with the possibility of changing the driving speed depending on the available space and local health and safety requirements.

Selected technical parameters:

• Maximum payload: up to 50 kg / m.
• Noise level: <70 [dB]
• Transport direction: two-way
• Lifting 3.5 degrees on hydraulic supports
• Operator panel: located on the front of the conveyor, allows for up / down adjustment, extension, starting the bi-directional belt, turning on / off the front lamps, controlling the lifting height
